AA545P Pet/Commercial Outlet Kit — Vacuum Inlet with Two Water/Chemical Outlets

Description

A complete pet-care station in one box

AA545P bundles everything for one wall station: a 2″ vacuum inlet and two quick-connect outlets, one plumbed for hot water and one for chemical or disinfectant solution. Mount the plates during rough-in, run 2″ vacuum pipe to the suction plate and 3/8″ PEX to the water outlets, then trim out with the covers after drywall.

Where it’s used

• Kennel runs, boarding suites and daycare play areas
• Veterinary exam, treatment and isolation rooms
• Grooming salons and self-wash stations
• Pairs with the AA391 / AA394 Animal Care Wet Cleaning Kits and the AA035 Dema injector for metered chemical

Works with

Every Aqua-Air power unit — Models 130, 150, 158, 230, 250 and 258 — and every Aqua-Air wet/dry hose set (AA275–AA279, AA077–AA080). Replacement parts: PA138R inlet valve/cover, PA131 mounting plate, AA242 outlet, PAF04 quick connect.

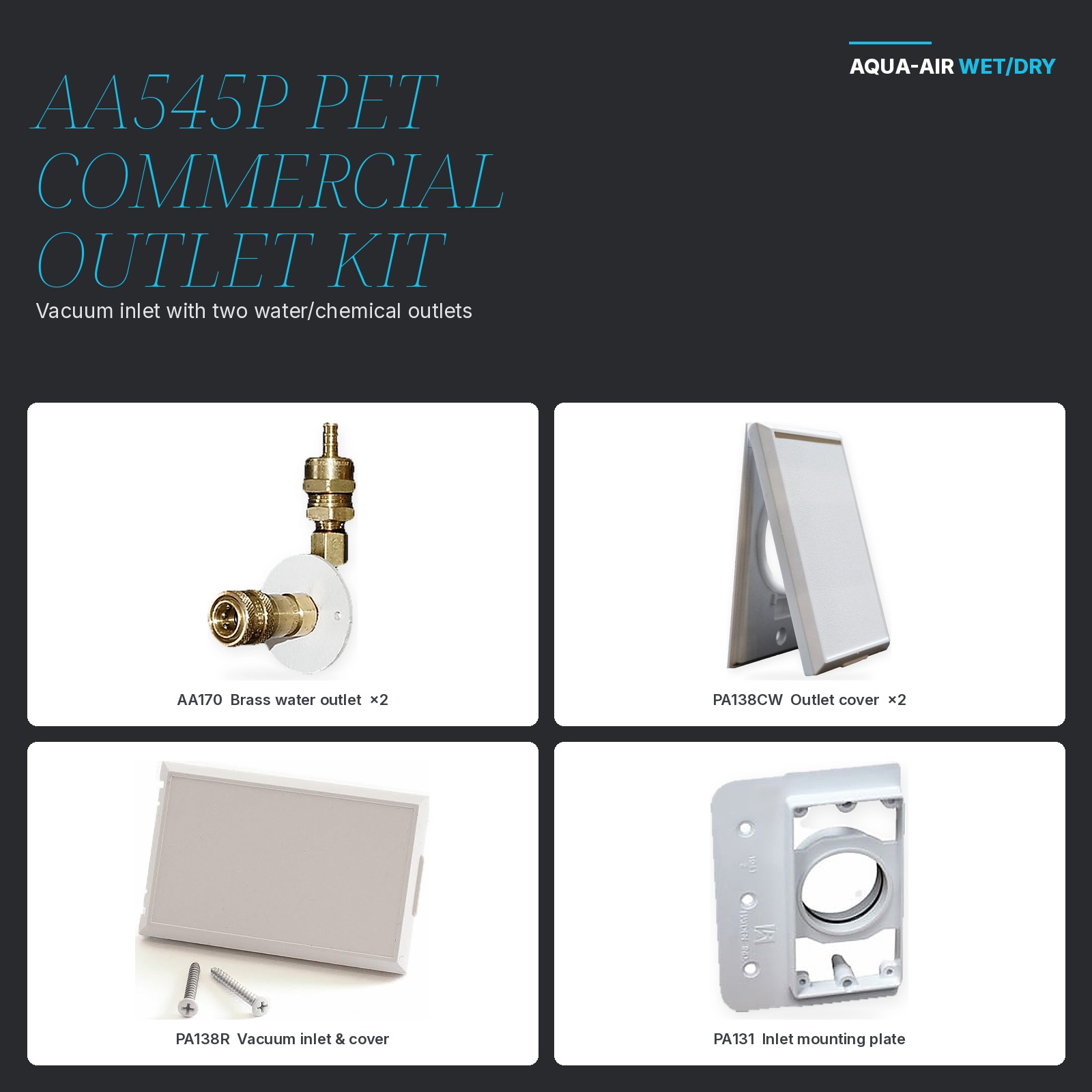

What’s in the kit

AA242 AA242 Water/Chemical Outlet Kit — In-Wall Hot Water Quick Connect with Mounting Plate & Cover Qty 2
Water/chemical outlet kit — brass assembly, mounting plate and white cover

PA138R PA138R Inlet Valve & Cover, White — Rust-Resistant 2″ Central Vacuum Inlet Qty 1
Vacuum inlet valve and cover, white

PA131 PA131 Mounting Plate, 2×4 — In-Wall Plate for the Vacuum Inlet Qty 1
Mounting plate, 2×4, for the suction inlet
