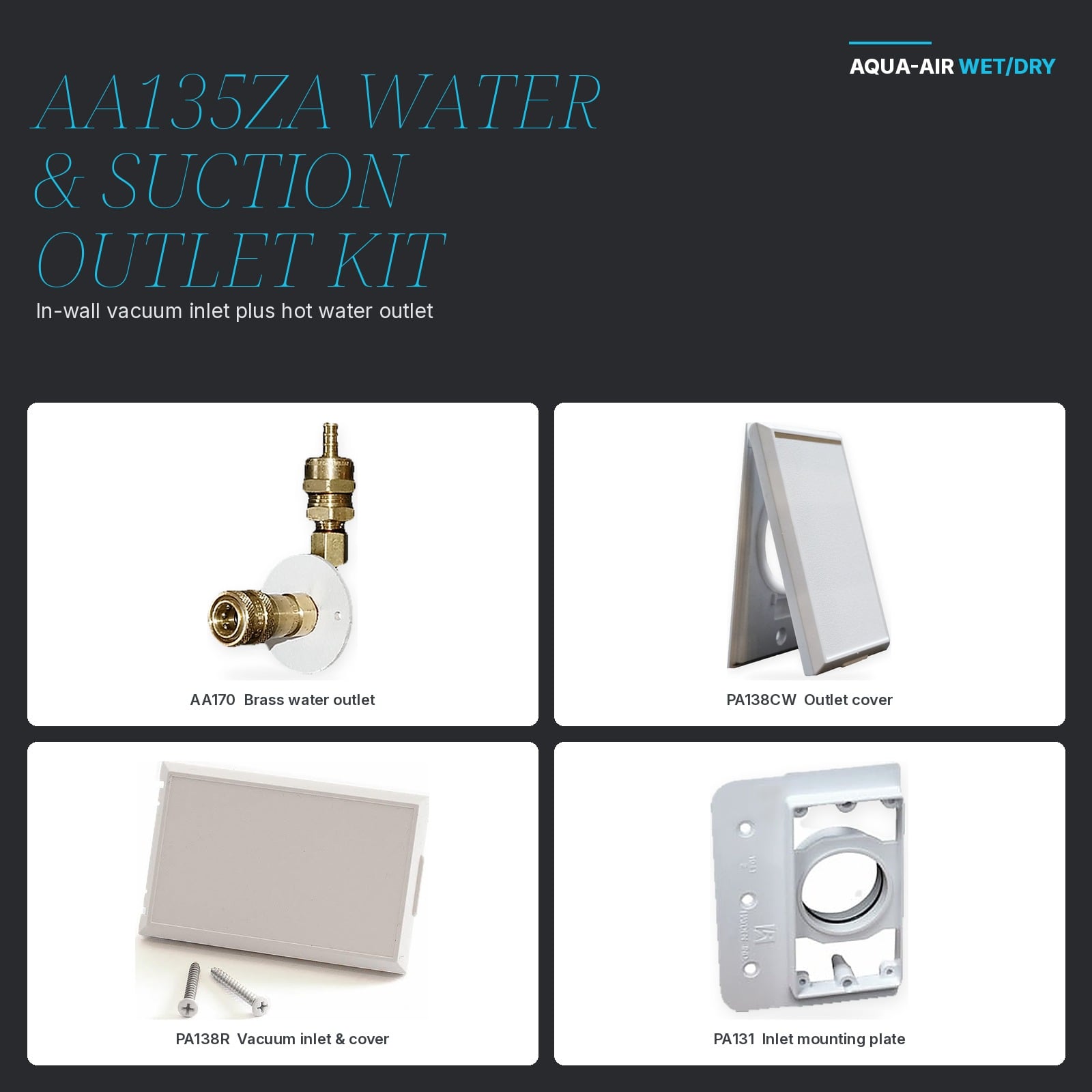

AA135ZA Water & Suction Outlet Kit — In-Wall Vacuum Inlet plus Hot Water Outlet

Description

A complete wet/dry station in one box

AA135ZA bundles everything for one wall station: a 2″ vacuum inlet and a hot-water quick-connect outlet side by side. Mount the plates during rough-in, run 2″ vacuum pipe to the suction plate and 3/8″ PEX to the water outlet, then trim out with the covers after drywall.

Where it’s used

• Residential wet/dry installations, new construction or retrofit
• Light commercial — offices, salons, restaurants
• For kennels and facilities that also need a separate chemical line, see AA545P / AA235Z

Works with

Every Aqua-Air power unit — Models 130, 150, 158, 230, 250 and 258 — and every Aqua-Air wet/dry hose set (AA275–AA279, AA077–AA080). Replacement parts: PA138R inlet valve/cover, PA131 mounting plate, AA242 outlet, PAF04 quick connect.

What’s in the kit

AA242 AA242 Water/Chemical Outlet Kit — In-Wall Hot Water Quick Connect with Mounting Plate & Cover Qty 1
Water/chemical outlet kit — brass assembly, mounting plate and white cover

PA138R PA138R Inlet Valve & Cover, White — Rust-Resistant 2″ Central Vacuum Inlet Qty 1
Vacuum inlet valve and cover, white

PA131 PA131 Mounting Plate, 2×4 — In-Wall Plate for the Vacuum Inlet Qty 1
Mounting plate, 2×4, for the suction inlet
