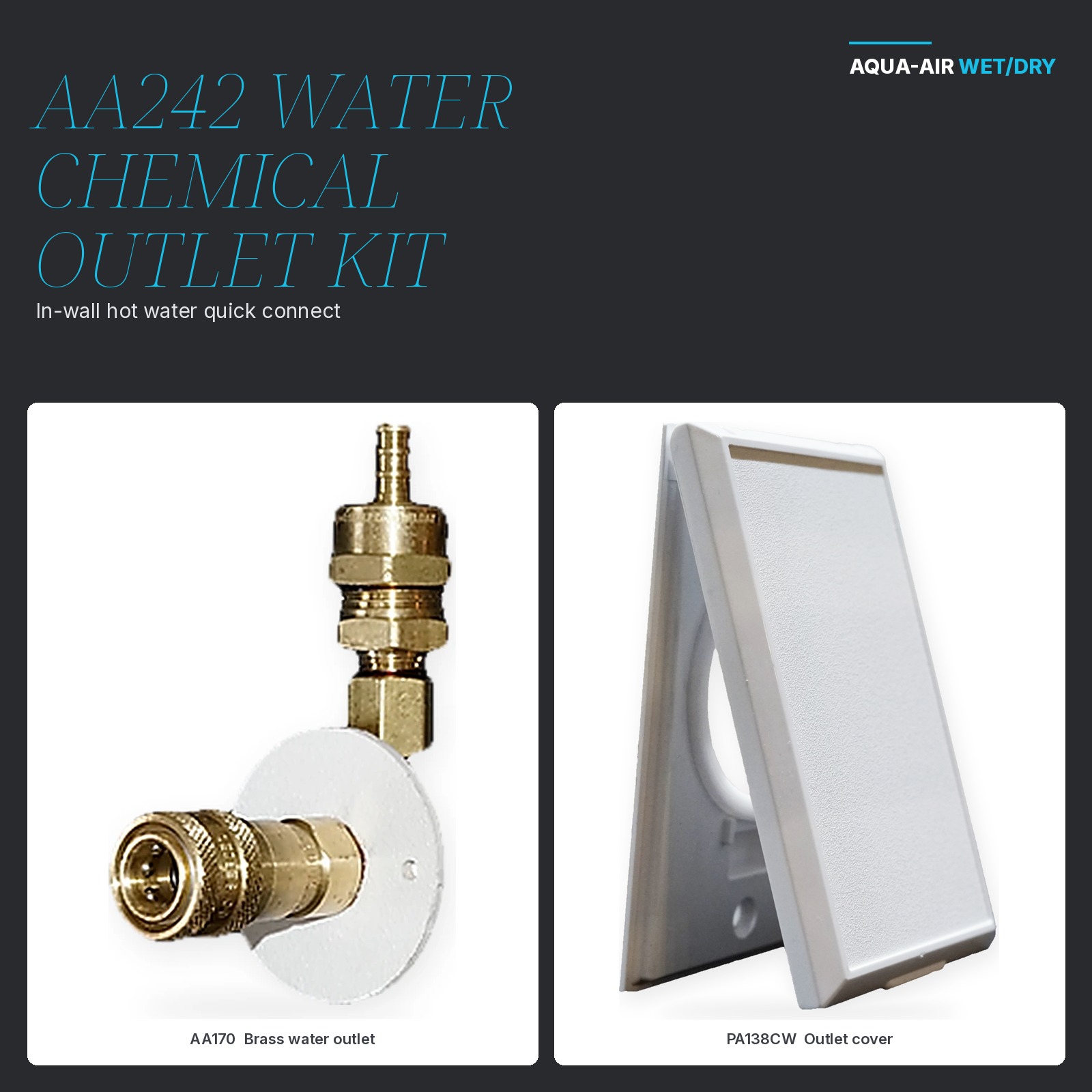

AA242 Water/Chemical Outlet Kit — In-Wall Hot Water Quick Connect with Mounting Plate & Cover

Description

Hot water where you clean

AA242 puts a hot water or chemical-solution connection in the wall beside your vacuum inlet, so the solution line on an Aqua-Air hose plugs in with one push. Behind the wall it connects to a 3/8″ PEX supply line from the power unit’s water manifold; in front, the 1/8″ female quick connect (PAF04) accepts any Aqua-Air solution hose.

Where it’s used

• Beside every Aqua-Air wet/dry vacuum inlet that needs hot water
• Twice per station in pet and commercial installations — one outlet for water, one for chemical — see the AA545P and AA235Z kits
• Retrofits: add hot water at an existing dry inlet to convert it for wet cleaning

Installation notes

Mounts to a stud or backer with the included plate; the cover plate finishes flush with the drywall. Supply is 3/8″ PEX crimp. Shut off supply and relieve pressure before servicing; the front quick connect (PAF04) is replaceable without opening the wall.

Related

AA135ZA pairs this outlet with a vacuum inlet and mounting plate as a complete station. Replacement cover plate PA138CW; replacement screws PA187; replacement brass assembly AA170.

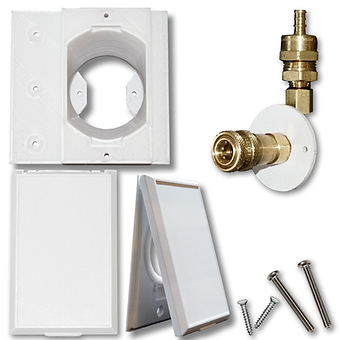

What’s in the kit

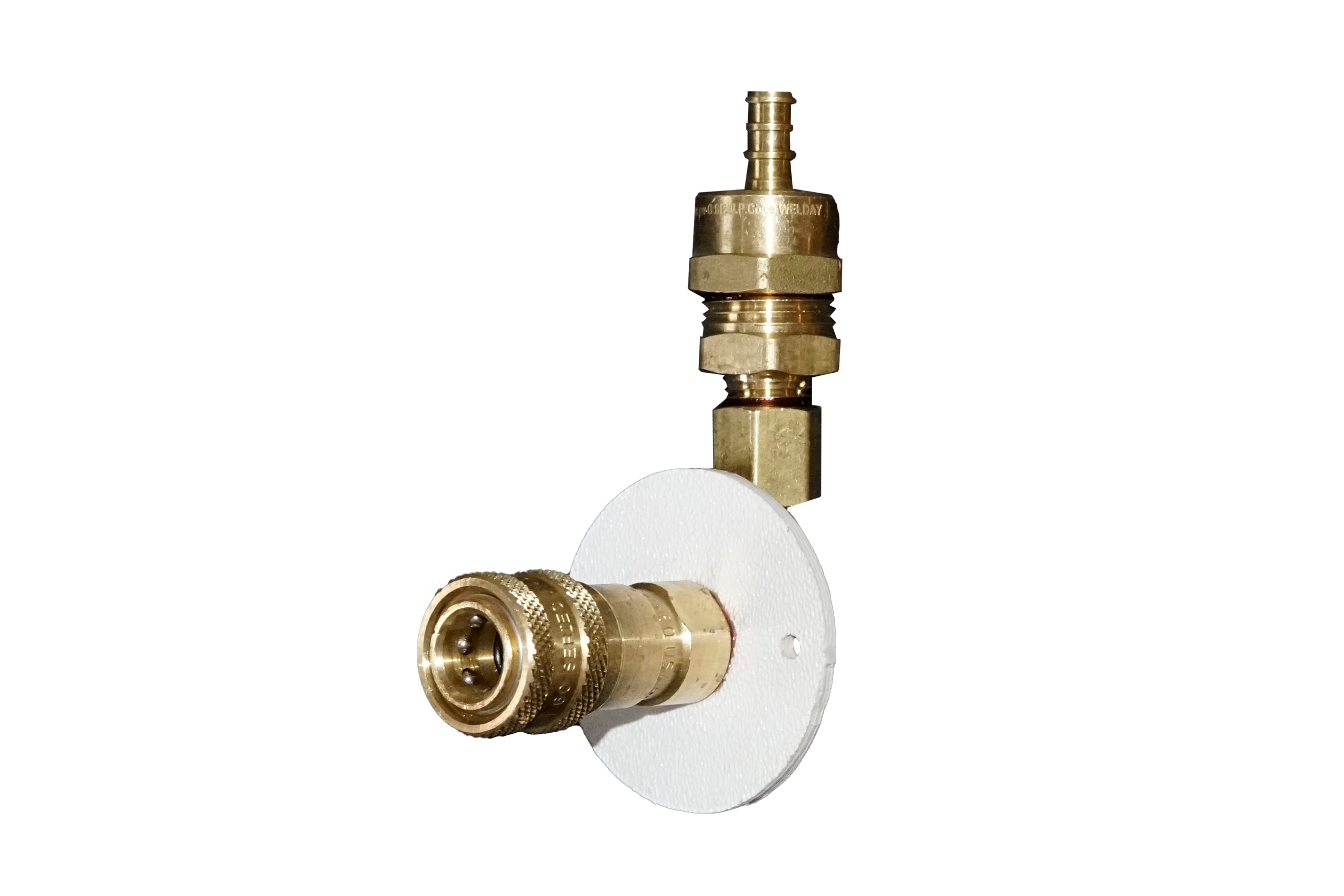

AA170 AA170 Brass Water/Chemical Outlet Assembly — Replacement for AA242 Wall Outlet Qty 1
Brass water/chemical outlet assembly with PAF04 1/8″ female quick connect and 3/8″ PEX × 1/2″ FPT adapter

PA131C Mounting plate for AA170 Qty 1
Included with the kit (not sold separately on the site)

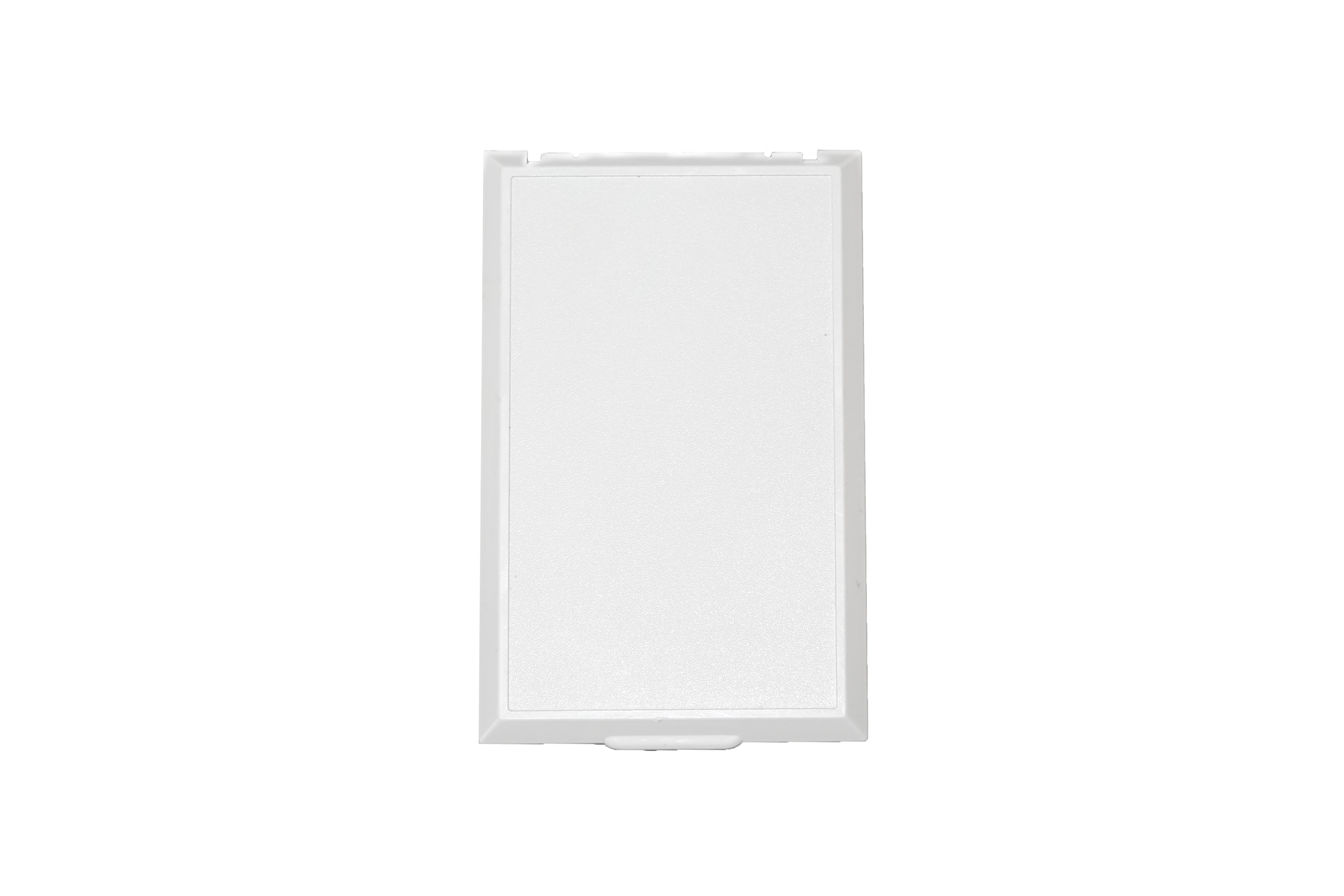

PA138CW PA138CW White Cover Plate — Face Plate for the AA242 Water/Chemical Outlet Qty 1
White cover plate

BR291 1/4″ × 1/4″ low-lead brass elbow Qty 1
Included with the kit (not sold separately on the site)

No separate part # Stainless machine screws and nuts; painted white cover screws Qty 1
Included with the kit (not sold separately)
